Certified KNX Building Automation System Engineer:
Peter Teh Hon Kee (+60165313713)


Peter Teh is a distinguished co-founder of VYROX AIoT, boasting expertise in Computer Science & Electrical Engineering, with a specialization in IoT programming, ELV Systems and Structured Cabling Engineering dating back to 2008. His extensive qualifications include certification by the KNX Association (K-Bus Automation System) acquired overseas in 2015. Since 2015, Peter and his proficient team have successfully managed over 63 KNX system site maintenance projects and have adeptly repaired more than 200 KNX smart home sites. His experience encompasses installations of KNX modules and programming with ETS6 for a wide array of KNX branded components, including Jung, Siemens, Schneider, Merten, ABB, Hager, Theben, theServa, and more.

VYROX KNX Services:
  1. Expert KNX Programming: VYROX specializes in creating customized KNX programs tailored to the specific needs and requirements of their clients. This ensures that the KNX system functions precisely as intended.
  2. Seamless Takeover of KNX Site Maintenance: VYROX takes over the responsibility of maintaining KNX systems, ensuring a smooth transition and efficient management of the automation systems. This helps in maintaining system reliability.
  3. Revitalizing Neglected KNX Systems: VYROX can restore KNX systems that have been poorly installed or neglected by previous installers, bringing them back to peak performance and efficiency.
  4. Comprehensive Supply of KNX All-Range Components: VYROX offers a wide selection of high-quality KNX components to meet the requirements of their clients' systems. This includes devices and equipment necessary for KNX installations.
  5. Proficient KNX Installations: VYROX's experienced technicians handle the installation process of KNX systems, ensuring precision and reliability in the setup.
  6. Innovative KNX System Add-Ons and Upgrades: VYROX provides additional features and upgrades for KNX systems, allowing clients to stay up-to-date with the latest technology and enhance the capabilities of their existing systems.
  7. Mobile App Integration: VYROX offers the convenience of integrating KNX systems with mobile apps. This enables users to control and monitor their KNX automation systems remotely from their smartphones or tablets.
  8. KNX Efficient Redundancy Design Practices: VYROX implements best practices for redundancy design in KNX systems. Redundancy ensures system reliability by minimizing downtime and disruptions, which is crucial for critical automation applications.

What is Smart Home Central Control



Smart home central control platform can be used to build complex home and building automation networks. With good expansibility, it is the best-value solution for personalized smart home system. It provides visual web interface without installing software. You can set and manage you system freely on your laptop and phone with a web browser.

This EIB/KNX Smart Home & Building Automation System was developed in the year of 2006 by a leading professional manufacturer and solutions provider of intelligent lighting control system products and has been committed in R&D, manufacturing and sales of intelligent building control products for 9 years. The products include: Relay Control, Module of 4/6/8/12 -fold, Dimming Module and Interface Module of multi-interface, High-power Dimming Box, networking devices and so on.

The system has been completed more than 1000 intelligent lighting system and room control system projects in domestic and overseas. With stable performance and excellent service, the organization has been widely praised by customers.

There is a R&D team of 50 persons, advanced production lines and comprehensive testing devices in the company. Our management system complies to ISO9001 certification and many of the products have obtained CE and CCC approval. As a manufacturer member of KNX Association, the organization has 4 invention patents, 22 utility model patents and 35 design patents. The team will continue to optimize our products and offer more efficient service. For further information please feel free to contact us.

All of the KNX products obtained international KNX certificate and registration mark.
- We have core protocol stack with independent property rights.
- We provide a full set of KNX products and accessories from actuators to the system components as well as background central control PC software systems

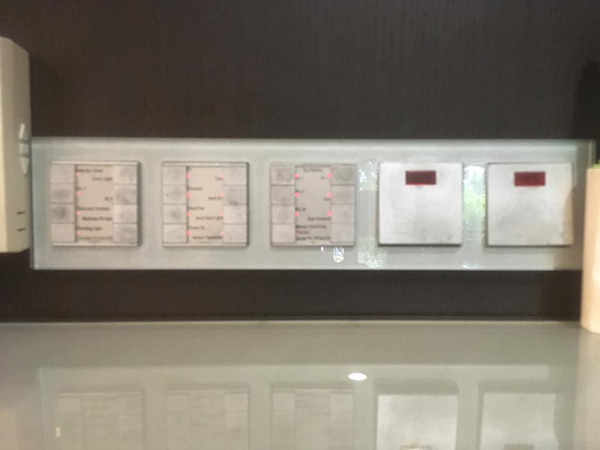

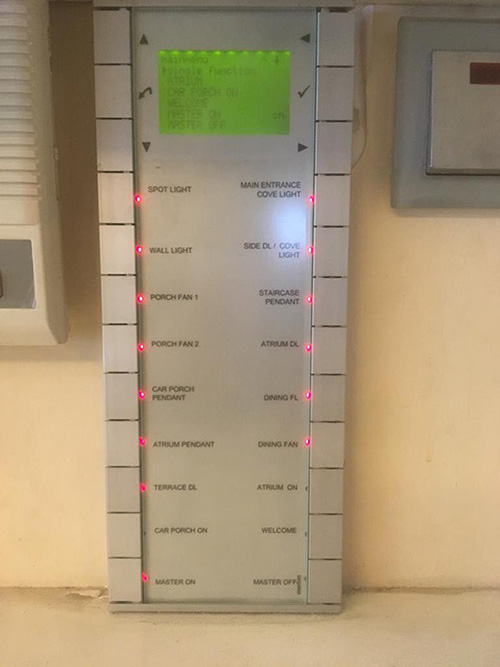

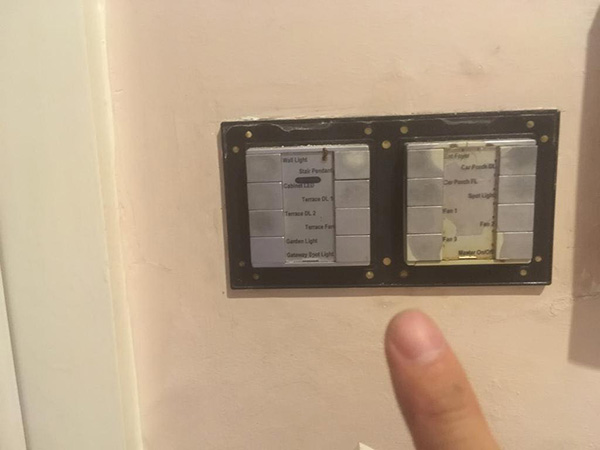

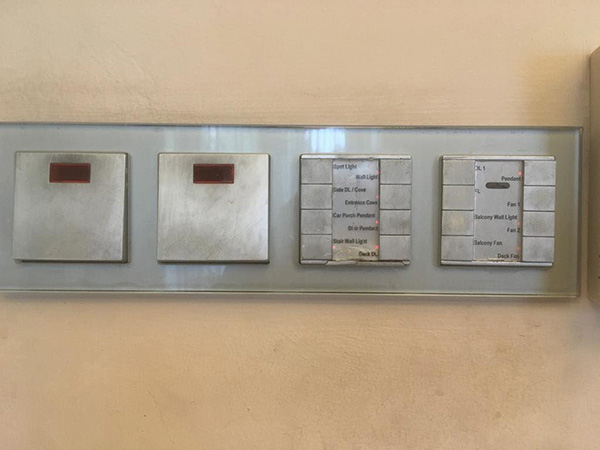

KNX Kuala Lumpur Sites Photo

Portfolio

Project reference: Beihai Guanling Resort
BEIHAI GUANLING RESORT
Project reference: Xi An Xian Yang International Airport
XI AN XIANYANG INTERNATIONAL AIRPORT
Project reference: Da Qing Oilfield General Hospital
DAQING OILFIELD GENERAL HOSPITAL
Project reference: Guang Zi Sports Center
GUANGZI SPORTS CENTER
Project reference:Shen Yang North No. 1Road Wan Da Plaza
SHENYANG NORTH NO. 1 ROAD WANDA PLAZA
Project reference: Qian Dong Nan national Museum
QIANDONGNAN NATIONAL MUSEUM
Project reference: Shangri-la Hotel Shen Zhen
SHANGRI-LA HOTEL SHENZEN
Project reference:Swan Lake Hotel
SWAN LAKE HOTEL

Exhibition

KNX Smart Home system exhibition 1 KNX Smart Home system exhibition 2

Relay Control Module

PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home Relay Control Module 2 fold Relay Control Module, 2-fold RM/60-2.6 RM/60-2.10
  • Keep 2-fold, 6A under on-off control
  • Keep 2-fold, 10A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load, also control of electro-thermal pump, valve
36x64.5x90
Smart Home Relay Control Module 4 fold Relay Control Module, 4-fold RM/60-4.6 RM/60-4.10
  • Keep 4-fold, 6A under on-off control
  • Keep 4-fold, 10A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit, and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load, also control of electro-thermal pump, valve
72x64.5x90
Smart Home Relay Control Module 6 fold Relay Control Module, 6-fold RM/60-6.6 RM/60-6.10
  • Keep 2-fold, 6A under on-off control
  • Keep 2-fold, 10A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load, also control of electro-thermal pump, valve
108x64.5x90
Smart Home Relay Control Module 8 fold Relay Control Module, 8-fold RM/60-8.6 RM/60-8.10
  • Keep 2-fold, 6A under on-off control
  • Keep 2-fold, 10A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load, also control of electro-thermal pump, valve
144x64.5x90
Smart Home Relay Control Module 12 fold Relay Control Module, 12-fold RM/60-12.6 RM/60-12.10
  • Keep 2-fold, 6A under on-off control
  • Keep 2-fold, 10A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load, also control of electro-thermal pump, valve
216x64.5x90
Smart Home Relay Control Module 2 fold Relay Control Module, 2-fold RM/60-2.16 RM/60-2.20
  • Keep 2-fold, 6A under on-off control
  • Keep 2-fold, 10A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load, also control of electro-thermal pump, valve
36x64.5x90
Smart Home Relay Control Module 4 fold Relay Control Module, 4-fold RM/60-4.16 RM/60-4.20
  • Keep 2-fold, 6A under on-off control
  • Keep 2-fold, 10A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load, also control of electro-thermal pump, valve
72x64.5x90
Smart Home Relay Control Module 6 fold Relay Control Module, 6-fold RM/60-6.16 RM/60-6.20
  • Keep 2-fold, 6A under on-off control
  • Keep 2-fold, 10A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load, also control of electro-thermal pump, valve
108x64.5x90
Smart Home Relay Control Module 8 fold Relay Control Module, 8-fold RM/60-8.1 6 RM/60-8.20
  • Keep 2-fold, 6A under on-off control
  • Keep 2-fold, 10A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load, also control of electro-thermal pump, valve
144x64.5x90
Smart Home Relay Control Module 10 fold Relay Control Module, 12-fold RM/60-12.16 RM/60-12.20
  • Keep 2-fold, 6A under on-off control
  • Keep 2-fold, 10A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load, also control of electro-thermal pump, valve
216x64.5x90
Smart Home Relay Control Module 2 fold Relay Control Module, 2-fold RM/60-2.20.F
  • Keep 2-fold, 20A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load also control of electro-thermal pump, valve
  • Function of current feedback
36x64.5x90
Smart Home Relay Control Module 4 fold Relay Control Module, 4-fold RM/60-4.20.F
  • Keep 2-fold, 20A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load also control of electro-thermal pump, valve
  • Function of current feedback
72x64.5x90
Smart Home Relay Control Module 6 fold Relay Control Module, 6-fold RM/60-6.20.F
  • Keep 2-fold, 20A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load also control of electro-thermal pump, valve
  • Function of current feedback
108x64.5x90
Smart Home Relay Control Module 8 fold Relay Control Module, 8-fold RM/60-8.20.F
  • Keep 2-fold, 20A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load also control of electro-thermal pump, valve
  • Function of current feedback
144x64.5x90
Smart Home Relay Control Module 12 fold Relay Control Module, 12-fold RM/60-12.20.F
  • Keep 2-fold, 20A under on-off control
  • Functions of logic, delay, preset etc.
  • Each circuit can also be used by 5 scenes of 8 bit and the 64 scene numbers are optional
  • Suitable for control of resistive and inductive load also control of electro-thermal pump, valve
  • Function of current feedback
216x64.5x90

Black Edge Dimming Module

PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home Dimming Control Module 2 fold Back Edge Dimming Module, 2-fold,1 0A DM/60-2.10.TE
  • Each circuit can set dimming threshold and soft start time
  • Set status of devices after restarting are that each circuit are off or recovery to status before restarting
  • Can set up to 64 scenes
  • Continuous variable dimming
  • Apply to switching and dimming of incandescent lamps, halogen lamps and low-voltage halogen lamps of traditional transformers or electronic transformers.
234x64.5x105
Smart Home Dimming Control Module 4 fold Back Edge Dimming Module, 4-fold,5A DM/60-4.5.TE
Smart Home Dimming Control Module 6 fold Back Edge Dimming Module, 6-fold,3A DM/60-6.3.TE
Smart Home Dimming Control Module 2 fold 1-10V 1-10V Interface Back Edge Dimming Module, 2-fold,10A DM/60-2.10.TEA
  • 1-1Ov interface
  • Keep 2-fold, 10A under dimming control
  • Apply to switching and dimming of Incandescent lamps, halogen lamps and low-voltage halogen lamps of traditional transformers or electronic transformers.
234x64.5x105
Smart Home Dimming Control Module 4 fold 1-10V 1-10V Interface Back Edge Dimming Module, 4-fold,5A DM/60-4.5.TEA
  • 4-fold, 1-1Ov signal input interface
  • Keep 4-fold,5A under dimming control
234x64.5x105
Smart Home Dimming Control Module 6 fold 1-1OV Interface Back Edge Dimming Module, 6-fold,3A DM/60-6.3.TEA
  • 6-fold, 1-1Ov signal input interface
  • Keep 6-fold,3A under dimming control
Smart Home Dimming Control Module 2 fold DALI Interface Back Edge Dimming Module, 2-fold,10A DM/60-2.10.TED
  • Meet standard DALI protocol
234x64.5x105
Smart Home Dimming Control Module 6 fold Relay Control Module, 6-fold RM/60-6.16 RM/60-6.20
Smart Home Dimming Control Module 8 fold Relay Control Module, 8-fold RM/60-8.1 6 RM/60-8.20
Smart Home Dimming Control Module 2 fold DMX512 Interface Back Edge Dimming Module, 2-fold, 10A DM/60-2.10.TEX
  • Meet standard DMX512 protocol
234x64.5x105
Smart Home Relay Control Module 2 fold Relay Control Module, 2-fold RM/60-2.20.F
Smart Home Relay Control Module 4 fold Relay Control Module, 4-fold RM/60-4.20.F
2N® HELIOS IP AUDIO KIT
The 2N® Helios IP Audio Kit is an OEM intercom for manufacturers of various devices, such as parking systems, information boards, industrial equipment or ATMs. Once installed in your system, it will enable you to enjoy not only audio communication, remote monitoring and control, but it will also handle your connection with the user. This gives you an advantage over the competition and provides your customers with the comfort of a live operator and the option of seeking advice by merely pushing a button.

CUSTOMER REFERENCES
Our existing technology had become extremely outdated, and we needed reliable IP equipment for our parking systems from someone who had experience with a similar solution. 2N offered us the 2N® Helios IP Audio Kit solution, which mens our requirements, and we were pleasantly surprised by the quality and software of this simplified VoIP solution
OVERVIEW
Sophisticated software functions enable the 2N® Helios IP Audio Kit to be set up so that it not only enhances your device's features, but also, in conjunction with your device, provides the customer with high user value. Communication takes place through a SIP 2.0 protocol, which is standard for VoIP telephony. In addition, with SIP intercoms you can also take advantage of cheap internet calls or connection via an IP PBX. Like other products in the 2N® Helios IP range, the Audio Kit is compatible with global manufacturers' PBX.

The compact module has a range of interfaces that enable easy connection of buttons, a keypad, signal LEDs, a microphone and speaker, as well as earphones. There are also universal input and output sockets to, for example, control lights or an entrance gate.

Curtain Module

PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home Curtain Module 2 fold, 4 fold Curtain Module,2-fold
Curtain Module,4-fold
CC/60-2
CC/60-4
  • Control output via Upper computer configuration in each circuit as well as via scenes
  • Can adjust to any position by cooperating with panels
  • Realize the association between scene and location, send scenes, and then curtain runs to the designated location
  • Positive and reverse output mechanical interlocking, safe and reliable.
72x64.5x90

Universal Module

PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home Universal Interface Universal Interface IM/60-2.4
  • Can receive system bus scenes,switch preset lighting scene rapidly, and to realize intelligent control. Setting delay time of each circuit to avoid current impact
  • Set status of devices after restarting are that each circuit is off or recovery to status before restarting
  • Function of programmable binary multiple modes
  • Function of remote software reset without cutting off power
  • Function of remote programming, testing and management
  • Function of conversion between group address and scene
55x20x58

Fire Protection Interface Module

PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home 24V Fire Protection Interface Module 24v Fire Protection Interface Module, 2-fold IM/60-F.24
  • Input 2-fold 24v DC fire protection signal
  • Input 2-fold 220v DC fire protection signal
  • Can set normally on and normally off scene
  • Can set scene recalling speed of each circuit
36x64.5x90
Smart Home Fire Protection Interface Module 2 fold 220v Fire Protection Interface Module, 2-fold IM/60-F.220

Analoge Input Module

PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home Analogue Input Module 2 fold Analogue Input Module, 2-fold AI/60-2
  • Provide 12v power supply for sensor
  • Receive 0-1Ov analogue signal
  • Scenes can be set up to 64
72x64.5x90
Smart Home Analogue Input Module 4 fold Analogue Input Module, 4-fold AI/60-4

Binary Input Module

PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home Binary Input Module 2 fold Binary Input Module, 2-fold DI/60-2
  • Provide 1 2v power supply for sensor
  • Receive binary signal
  • Scenes can be set up to 64
72x64.5x90
Smart Home Binary Input Module 4 fold Binary Input Module, 4-fold DI/60-4

Time Module

>
PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home Time Controller Time Controller TM/60-1
  • Time control schedules can be set up to 200
  • Every schedule can cycle annually, monthly and weekly
  • Time control schedule can also set as single cycle
  • Can set special holiday scene
  • Calculate automatically the time of sunrise and sunset based on longitude and latitude
36x64.5x90

Coupler

PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home Line Coupler Line Coupler LC/60-1
  • It links a branch line with area or it links area with total system
  • Telegrams can be filtered
  • Installation in standard DIN rail
108x64.5x90

IP Interface

PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home IP Interface IP Interface GM/60-1
  • Protocol conversion between system bus network and Ethernet network
36x64.5x90

Power Supply Module

PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home power supply module Power Supply Module PW/60-1
  • Provide centrally connected power supply for 6000 series products
108x64.5x90

Interface Module

PICTURE NAME MODEL FUNCTION DIMENSION (MM)
Smart Home Interface Control Module 2 fold 1 -1 Ov Interface Module,2-fold IM/60-2.A
  • Can store 64 preset lighting scenes
  • Each circuit can set dimming threshold save resources
  • Can set soft start time, effectively eliminate surge current, so prolong the service of lights
  • Each circuit outputs 1-10v DC signal independently ,can control 1-10V interface electronic ballast and 1-10v LED dimming driver
  • Set status of devices after restarting are that each circuit are off or recovery to status before restarting
72x64.5x90
Smart Home Interface Module 2 fold 1-10v Interface Module, 4-fold IM/60-4.A 108x64.5x90
Smart Home Interface Module 1 fold DALI Interface Module,1 -fold IM/60-1.D
  • Assigning address for connected devices automatically
  • Every circuit can configure 16 scenes arbitrarily
  • Control of single address or group address can be achieved
  • Function of reading device address
  • Addressable broadcast, easy to find out location of lamps
72x64.5x90
Smart Home Interface Module 4 fold DALI Interface Module,4-fold IM/60-4.D 108x64.5x90
Smart Home Interface Module 1 fold DMX512 Interface Module, 1-fold IM/60-1.DMX51 2
  • 1-fold DMX 512 signal output
  • Can configure any color scene, up to 64
  • Each circuit can configure scene of any dimming valve.
36x64.5x90
Smart Home RS232 Interface Module 1 fold Rs232 Interface Module, 1-fold IM/60-1.232
  • Can control each circuit's switching and dimming of sub network via RS232 interface
  • Can send system bus scenes via RS232 interface
  • Can receive scene information of bus via RS232 interface
36x64.5x90

Countries

We have customers from all over the world!
Malaysia
Malaysia
Singapore
Singapore
China (Hong Kong)
China (Hong Kong)
US
US
UK
UK
Japan
Japan
Japan
South Africa
India
India
UAE
UAE
Qatar
Qatar
Iran
Iran
Iraq
Iraq
Uzbekistan
Uzbekistan
Jordan
Jordan
Denmark
Denmark
Bulgaria
Bulgaria
Panama
Panama
Nigeria
Nigeria
Morocco
Morocco
Egypt
Egypt
Australia
Australia
Airplane VYROX patroling in Kuala Lumpur Malaysia 2020!
Jet VYROX flying in Kuala Lumpur Malaysia 2020!
Helicopter VYROX flying in Kuala Lumpur Malaysia 2020!
Cloud VYROX floating on the sky
Cloud VYROX floating on the sky

Quick Email

Copyright © 2012-2024 VYROX International Sdn. Bhd. (1023799-A). All Rights Reserved.
VYROX Partner Login
Login
